Get32x32Bitmap method

Description

VWorks software calls the Get32x32Bitmap method to get a bitmap image from the plugin that represents a device or the specified task.

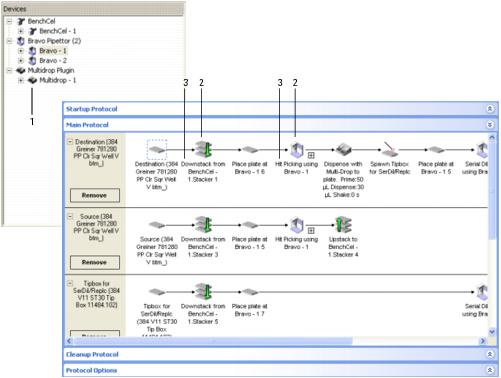

The following figure shows two bitmap images:

•	Device icon in the Device file area that represents the Multidrop

•	Task icon in the protocol editor that represents a Downstack task

Figure Device and task icons





Item	Description	Purpose
1	Device icon (bitmap image)	Represents a device
2	Task icon (bitmap image)	Represents a task
3	Task description	Describes the task associated with the task icon The task description is returned with a call to the GetDescription method. See “GetDescription method” .

Syntax



HRESULT Get32x32Bitmap( [in] BSTR CommandName, [out,retval] IPictureDisp **ppPicture );

Parameters



CommandName	[in] An empty string, or the name of a task. If the CommandName parameter contains an empty string, VWorks software is asking for a bitmap image that represents a device. If the parameter contains a string (the name of a task), VWorks software is asking for a bitmap image to represent a task.
ppPicture	[out, retval] An IPictureDisp object that contains the handle to the bitmap for the image. This bitmap must be 32 pixels wide by 32 pixels high. Refer to the Microsoft SDK documentation for more details about the standard COM IPictureDisp interface at http://windowssdk.msdn.microsoft.com/en-us/library.

Related information



For information about...	See...
GetDescription method	“GetDescription method”
