Emergency stops and pauses







Stopping in an emergency

To stop in an emergency:

Press the red button on the emergency-stop pendant. The Bravo head stops immediately.

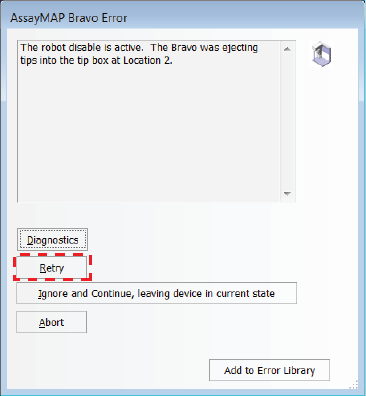

The robot disable is active error message opens.

To restore the Bravo device after an emergency stop:

1	At the emergency-stop pendant, turn the red button clockwise. The spring-loaded button pops up.



2	If applicable. Remove any object that is interrupting the Light Curtain.

3	In the AssayMAP Bravo Error dialog box, click Retry.

In most cases, the AssayMAP Bravo Platform will be able to resume the run where it left off.



Pausing a run

To pause and then continue a run:

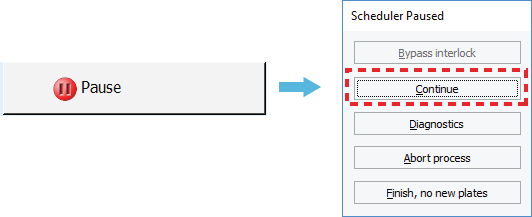

1	In the workbench application or utility control panel, click Pause.

The task currently in progress finishes before the protocol pauses. The Scheduler Paused dialog box opens.

2	While the Bravo device is idle, make the necessary changes to your run, for example, adjusting a labware position or volume.

3	To resume the run, click Continue in the Scheduler Paused dialog box.

To cancel the run, click Abort process in the Scheduler Paused dialog box.
