Preparing the solutions

The following solutions are required for the Peptide Cleanup: Aspiration Mode protocol:

•	Priming & Syringe Wash Buffer

•	Equilibration & Cartridge Wash Buffer

•	Elution Buffer



A small reagent volume excess is required in all labware types to ensure proper volume transfer. Use the Reagent Volume Calculator to automatically include excess volume, or look up the recommended values for each labware type in the Labware Reference Guide.



Note: You can find the Labware Reference Guide in the Literature Library page of the Protein Sample Prep Workbench.

Using the Reagent Volume Calculator for Peptide Cleanup: Aspiration Mode





The Reagent Volume Calculator is a Microsoft Excel file that uses formulas to calculate reagent needs and recipe volumes.

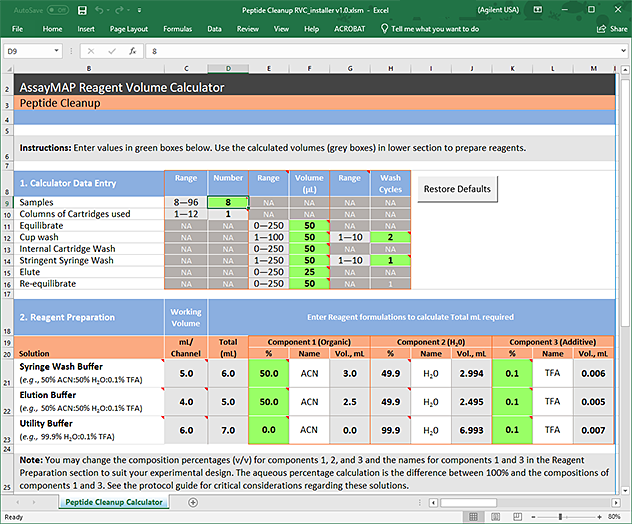

Figure. Reagent Volume Calculator for Peptide Cleanup: Aspiration Mode



As the figure shows, the worksheet contains two sections:

•	Calculator Data Entry. You enter the number of samples to process and the volume for each step in the protocol. The calculator determines the volumes required based on your input, taking into consideration pipetting overage and evaporation concerns.

•	Reagent Preparation. You enter the concentrations of each component in your reagent, and the worksheet calculates the recipe volumes required.

To use the Reagent Volume Calculator:

1	Open the App Library.

2	Locate the application, and then click the corresponding Calculator button. Microsoft Excel starts and displays the calculator.

3	Ensure that you enable content in Microsoft Excel.

4	Type the values in the green boxes. Notice that as you change the values in the green boxes, the calculated values change.

Note: The green box should remain green after you enter a value. If you enter a value that is outside the normal working range, the box becomes yellow. If you enter a value that is outside of the acceptable range, the box becomes red.

To display the corresponding tooltip for a setting, mouse over a box that has a red triangle in the upper right corner.





Return to top

Preparing the buffers

The following table describes the reagents and deck locations. The AssayMAP protocols are blind to the composition of the solutions, so you can easily adapt your optimized chemistry. Agilent Technologies recommends the following buffers as a starting point for optimizing the AssayMAP Peptide Cleanup: Aspiration Mode chemistry.



Reagent (deck location)	Composition and comments
Priming & Syringe Wash Buffer (deck location 5)	Typically 50% or greater organic (must be >25% organic) acidic, and identical in composition to the Elution Buffer to simplify the solution preparation, for example, 70% ACN: 29.9% H2O : 0.1% TFA The high-percentage organic composition is essential for reversed-phase cartridges as they ship dry and must be wetted with a high percentage organic solution or they will have very little binding capacity. This solution, the other solutions used in this application, and the sample are typically acidic. Other more mass-spec-friendly acids can substitute for TFA.
Elution Buffer (deck location 6)	High percentage organic solvent and acidic solution, for example, 70% ACN: 29.9% H2O : 0.1% TFA
Equilibration & Cartridge Wash Buffer (deck location 8)	Very low or no organic and acidic solution. Typically, similar in the percentage organic and acidity to the sample, for example, 99.9% H2O : 0.1% TFA



Return to top

Dispensing the solutions



To prevent evaporation, dispense the reagents into the supplied labware immediately before running the protocol, or keep the plates lidded until the run begins.



To dispense the solutions into the labware:

1	Optional. Label each piece of labware so that you can easily identify them.

2	Add the specified volume of the Priming Buffer & Syringe Wash Buffer into the labware to be placed at deck location 5. Fill only the channels that will be used.

3	Add the specified volume of Elution Buffer into the labware to be placed at deck location 6. Fill only the channels that will be used.

4	Add the specified volume of Equilibration & Cartridge Wash Buffer into the labware to be placed at deck location 8. Fill only the channels that will be used.

5	If necessary, centrifuge the reagent labware to remove bubbles.



If you are using fewer than 96 cartridges, make sure you fill the labware to correspond with the sample layout in the sample plate and cartridge positions on the 96AM Cartridge & Tip Seating Station. For more information, see Preparing the samples.
