Device integration options

About devices and integration plates

Devices are individual pieces of equipment that are integrated in a system or workstation. Typically, devices store or process labware. For example, the Plate Hotel stores labware, and the Bravo Platform processes labware.

This topic lists the devices that can be integrated with the BenchBot Robot:

•	Agilent Technologies devices

•	Third-party devices

In addition, this topic explains the use of the BenchBot Robot integration plates. See BenchBot integration plates.

Agilent Technologies devices

Labware-processing devices that can be integrated in a system or workstation with the BenchBot Robot include:

•	Bravo Platform

•	Microplate Centrifuge

•	Microplate Labeler

•	PlateLoc Sealer

•	Seal Piercer

•	Vertical Pipetting Station

A number of other devices that store labware or permit the stacking of devices can also be integrated with the BenchBot Robot. For a comprehensive list of these devices, contact Automation Solutions Customer Service. For instructions on how to install and configure the device to work with the BenchBot Robot, see the device user guide.

Third-party devices

Many third-party devices can be integrated to work with the BenchBot Robot. For a comprehensive list, contact Automation Solutions Customer Service.

BenchBot integration plates

The BenchBot integration plates are flat, metal plates that provide a stable mounting surface for the BenchBot Robot and other devices. The position and number of mounting holes in the plates accommodate a large variety of device configurations. In addition, the plates have locking mechanisms that keep the robot and devices in position during protocol runs.

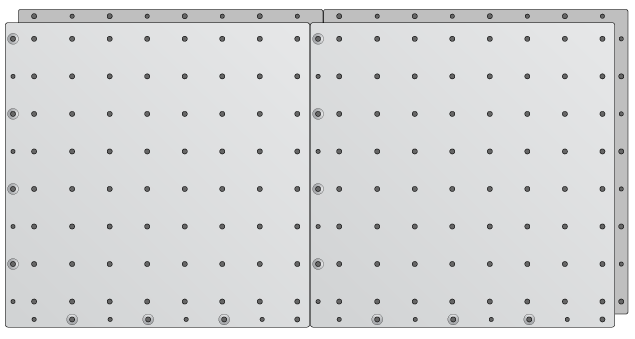

Figure. Example of two integration plates assembled and in locked position



Different sizes of integration plates are available. You can combine different plates to create a single mounting surface that meets the needs of your laboratory. For plate dimensions and mounting specifications, see the BenchBot Robot Safety and Installation Guide.

The integration plates are supplied with the BenchBot Robot in the workstation configuration. The plates are optional and recommended for the BenchBot Robot in the standalone/component configuration.

For mounting instructions, see BenchBot Robot Safety and Installation Guide.
