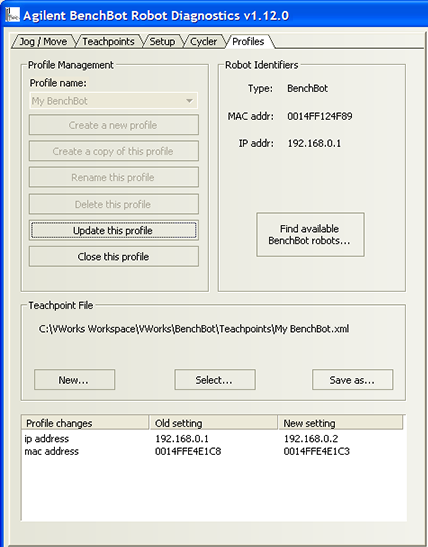

Profiles tab



Profile Management area



Selection or command	Description
Profile name	Displays the selected profile. Also allows you to select from the list of available profiles.
Create a new profile	Creates a new profile.
Create a copy of this profile	Creates a duplicate copy of the selected profile.
Rename this profile	Renames the selected profile.
Delete this profile	Deletes the selected profile.
Update this profile	Saves changes to the selected profile.
Initialize this profile	Initiates communication with the robot using the selected profile.

Robot Identifiers area



Display value or command	Description
Device type	Displays the type of device.
MAC addr	Displays the MAC address that identifies the robot. The address is displayed in the Find BenchBot Robots dialog box.
IP addr	Displays the IP address that uniquely identifies the robot. The address is displayed in the Find BenchBot Robots dialog box.
Find available BenchBot Robots	Opens the Find BenchBot Robots dialog box so that you can locate and select the robot.

Teachpoint File area



Display value or command	Description
File path	Displays the location of the selected teachpoint file.
New	Allows you to create a new teachpoint file.
Select	Allows you to select an existing teachpoint file.
Save as	Allows you to change the teachpoint file name or storage location from the default. The default teachpoint file name is Teachpoints_<profilename>.xml, where <profilename> is the name of the profile. The software saves the file in the C:\VWorks Workspace folder.

Log table

The table below the Teachpoint File area lists all of the changes you have made to the selected profile.
