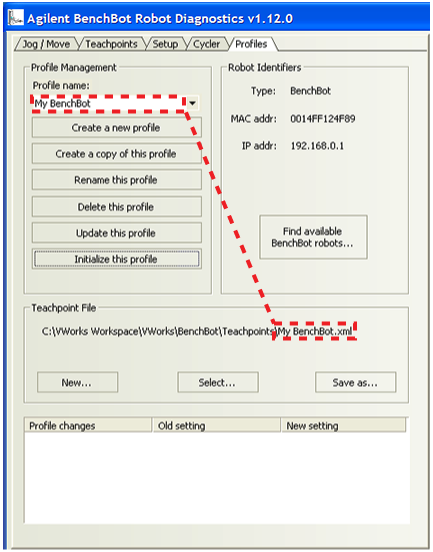

Every BenchBot Robot profile must be associated with a teachpoint file. When you create a profile, the software automatically creates a new default teachpoint file. Its location is shown in the Teachpoint File area. The file name is teachpoint_<profilename>, and the file remains empty until you set teachpoints.
Proceed to Saving the profile. Later you will add teachpoints to this teachpoint file.
If you want to change the teachpoint file name or storage location, in the Teachpoint File area, click Save as. In the Save As dialog box, type a name for the teachpoint file, select the storage location, and then click
Save. The file path appears in the Teachpoint File area. Later you will add teachpoints to this file.
In the Teachpoint File area, click
Select. In the
Select a Teachpoint File dialog box, locate and select the teachpoint file that you want to use, and then click
Open. The file path appears in the Teachpoint File area.
