Editing and managing profiles

Editing profiles

To edit a profile:

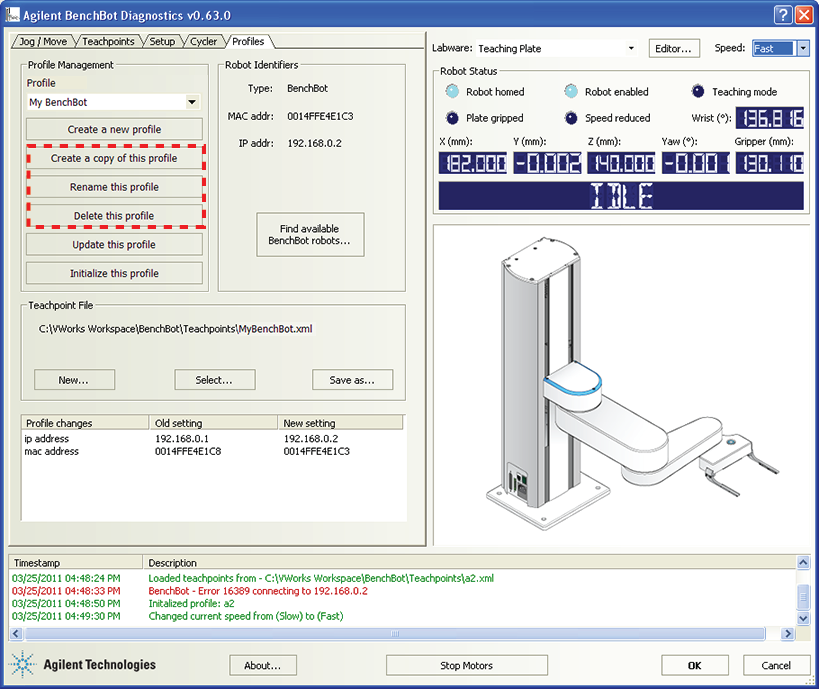

1	In the BenchBot Robot Diagnostics Profiles tab, select the profile you want to edit in the Profile Management area.

2	Modify the profile information.

Note: Changes you make in the profile are shown in the table below the Teachpoint File area. In addition, the changes are shown in the log area at the bottom of the dialog box.

3	When you are finished, click Update this profile to save the changes.

Managing profiles

In the BenchBot Robot Diagnostics Profiles tab, you can select an existing profile, and then rename, copy, or delete the profile.



CAUTION A copy of an existing profile references the same teachpoint file.



Related information



For information about...	See...
Creating profiles for the robot	Creating BenchBot Robot profiles
Setting up robot communication	Setting up robot communication
Selecting a teachpoint file	Selecting a teachpoint file
Saving the profile	Saving the profile
Initializing the profile	Initializing the profile
Setting teachpoints	Setting teachpoints
Editing profiles	Editing and managing profiles
