Connection panel description





Bravo rear connection panel

The following figure and table describe the connection panel at the rear of the Bravo Platform.

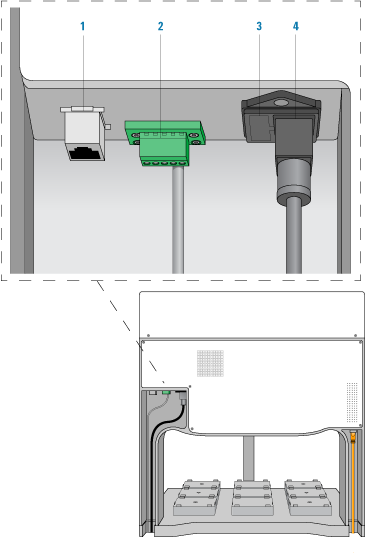

Figure. Connection panel on back of Bravo Platform





Item	Feature	Description
1	Ethernet port	Connects the Ethernet card in the controlling computer to the Bravo Platform.
2	Pendant port	Connects the emergency-stop pendant and a Bravo light curtain to the Bravo safety interlock circuit. The connection is made through an emergency-stop control, such as the Robot Disable Hub. IMPORTANT The safety interlock circuit must be closed for the Bravo Platform to operate.
3	Fuse holder	Houses the AC inlet fuse and a spare fuse for the Bravo Platform.
4	AC power entry	Connects the Bravo power cord to an AC outlet with a grounded circuit.

Pump I/O port

The following figure shows the Pump I/O port on the back of the Bravo Platform. The table below describes the Pump I/O port in detail.

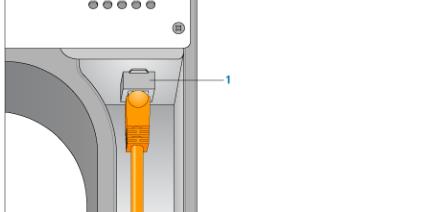

Figure. Pump I/O port (Bravo Platform back view)





Item	Feature	Description
1	Pump I/O port	An RJ-45 I/O port that connects the Pump Module to the Bravo Platform. The connection is made with a straight-through shielded Cat-5 or Cat-6 (Ethernet) cable. IMPORTANT This is not an Ethernet port.





Related information



For more information about...	See...
Installing and connecting the Bravo Platform	G5562A, G5563A Bravo Platform Safety and Installation Guide
