Configuration tab quick reference

About this topic

This topic provides a reference for the Configuration tab in Bravo Diagnostics.

Procedures

The Configuration tab enables you to configure and test accessories. For the procedures, see:

•	Accessories and platepads

•	Autofilling accessories

Contents

The Configuration tab in Bravo Diagnostics contains the following areas:

•	Location Configuration area

•	Accessory Configuration area

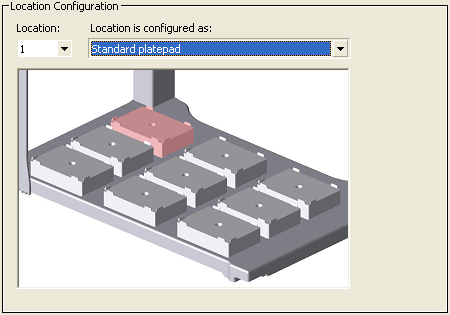

Location Configuration area





Control or indicator	Description
Location	A list that specifies the deck location. The deck layout graphic highlights the selected location.
Graphical display of Bravo deck	An interactive display that provides the following: • Alternative way to specify the location that you want to configure. • Visual display of the type of accessory configured for each location.
Location is configured as	Specifies the function of the selected location as either: • Standard platepad. Designates a generic pad. • (SRT only) platepad for 250 uL tips. Available only for the shorter model Bravo SRT for use with the 250‑µL tip boxes. See (Bravo SRT only) Setting up an LT tip box location. • Accessory. Displays the Accessory Wizard, which steps you through specifying a configured accessory at the specified position.

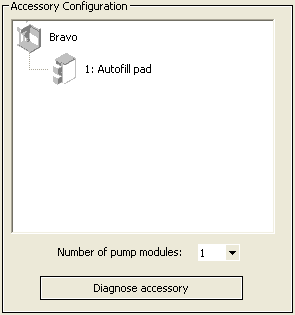

Accessory Configuration area





Control or indicator	Description
Graphical display of configured accessories	Displays icons of the Bravo Platform and any configured accessories associated with specific deck locations.
Diagnose accessory	Displays the Accessory Diagnostics dialog box for the selected accessory. Click the accessory icon in the graphic to display the corresponding dialog box. See Accessory Diagnostics dialog box.
Number of pump modules	Specifies the total number of Pump Modules for the given Bravo Platform. Each Pump Module contains two peristaltic pumps.

Related information



For information about…	See…
Opening Diagnostics	Opening Bravo Diagnostics
Setting up accessories	Bravo accessories overview
Troubleshooting problems	• Troubleshooting hardware problems • Troubleshooting hardware-related error messages
Reporting a problem	Reporting problems
