Opening Bravo Diagnostics





About this topic

To establish communication between the host computer and the device, you initialize the device. You can initialize the device in the following ways:

•	Diagnostics. To control the device using the Diagnostics software.

•	VWorks window. To use VWorks to control the device, for example, to run a protocol, you initialize the devices in the VWorks window.

This topic describes what happens during initialization.

Procedure

To open Diagnostics:

1	In the VWorks software window, ensure the correct device file is open.

To open a device file, choose File > Open, and then select the appropriate device file (*.dev) in the Open dialog box.

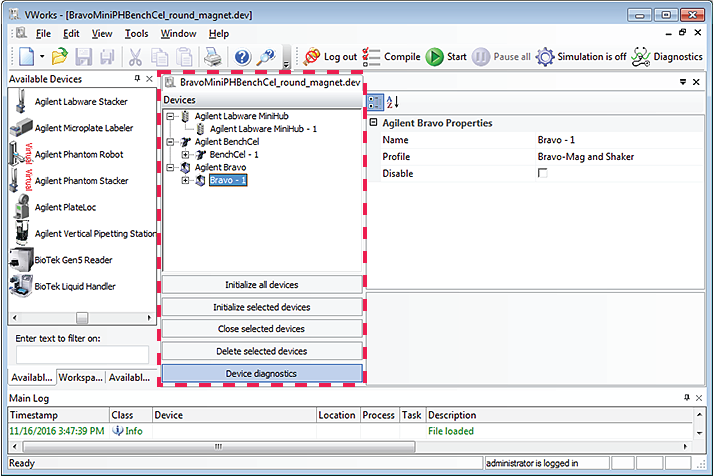

2	In the Devices area of the opened device file tab, highlight the device icon, and then click Device diagnostics.

Alternatively, you can double-click the device icon.





The device’s diagnostics dialog box opens.





Figure. Agilent Bravo Diagnostics dialog box
