Restoring robot settings





About the robot settings

In the Setup tab, when you click the Save ALL advanced settings to file, the software saves all of the values that are in the Setup tab to an XML file, also called a configuration file. If any of the settings were lost, you can recover them using the XML file.

Procedure

To restore the robot settings:

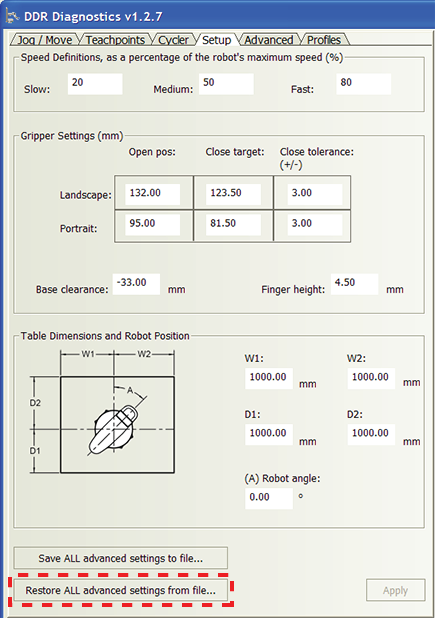

1	In the Setup tab, click Restore All advanced settings from file.



2	In the Open dialog box, locate and select the desired configuration file.

3	Click Open. The settings are restored.





Related information



For information about...	See...
Complete list of available commands you can use in DDR Diagnostics	Quick reference
Teachpoints tab	Setting teachpoints
Profiles tab	Creating Direct Drive Robot profiles
