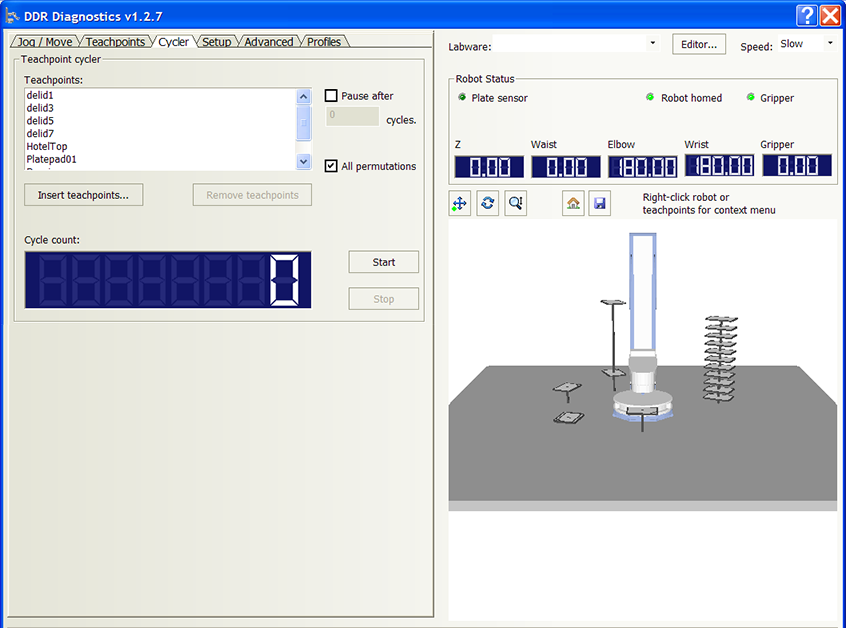

Cycler tab





Command or option	Description
Insert teachpoints	Allows you to select the desired teachpoints from the existing teachpoints list.
Remove teachpoints	Removes the selected teachpoints from the Teachpoints list.
Pause after ___ cycles	Pauses the cycling after the specified number of cycle times.
All permutations	Runs the all-permutations cycling sequence.
Start/Pause	Starts the cycling.
Stop	Stops the cycling. The robot will stop after the current pick-and-place action.
