Changing the rotation speed

About this topic

You can select the speed at which the Labware MiniHub turns while you are making adjustments in Labware MiniHub Diagnostics. For example, you can select the Slow speed when you are setting up or troubleshooting the Labware MiniHub.

Note: To set the rotation speed for protocol runs, use the Speed selection in the Profiles tab.

Procedure

To select the diagnostic rotation speed:

1	If you have not already done so, open diagnostics. See Opening Labware MiniHub Diagnostics.

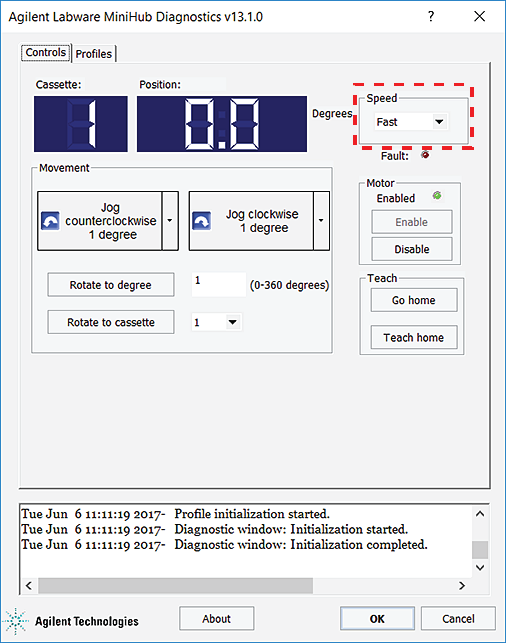

2	In the Controls tab, select one of the following speeds from the Speed list:



Speed	Description
Slow	Rotates the MiniHub at 25% of the factory-set maximum speed.
Medium	Rotates the MiniHub at 50% of the factory-set maximum speed.
Fast	Rotates the MiniHub at 100% of the factory-set maximum speed.
