Turning on and off the Labware MiniHub





Turning on the Labware MiniHub



CAUTION The Labware MiniHub will rotate during the startup process. Obstructing the Labware MiniHub while it is rotating will cause an error.

To turn on the Labware MiniHub:

1	Ensure that the power supply is connected:

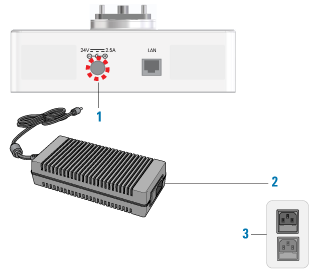

a	The power supply cable connects to the 24V port (1) on the MiniHub base, as the following figure shows.

b	The power cord connects to the AC power entry on the (2) power supply on one end and to a (3) power source with grounded circuit on the other end.





2	On the power supply, press the power switch to the on (I) position.

On the Labware MiniHub base, the green power light () turns on.

Turning off the Labware MiniHub

To turn off the Labware MiniHub:

On the power supply, press the power switch to the off (o) position. On the Labware MiniHub base, the green power light () turns off.





Related information



For information about...	See...
Safety information	G5584A Labware MiniHub Safety and Installation Guide
Adding the Labware MiniHub in the device file	Adding and deleting a Labware MiniHub in the device file
Creating profiles for the MiniHub	Creating Labware MiniHub profiles
Setting teachpoints	Setting robot teachpoints
