Laboratory requirements

About this topic

This topic describes the requirements for the site where you plan to install the Microplate Labeler. The topics are:

•	Laboratory space requirements

•	Electrical requirements

•	Compressed air requirements

•	Environmental requirements

•	Computer requirements

•	Consumables

Laboratory space requirements

General bench requirements

Make sure the bench for the Microplate Labeler has the following:

•	Sufficient space to accommodate the Microplate Labeler, computer, monitor, and accessories

•	Sufficient clearance:

–	On the back of the device to access power, communication, and air tubing connections

–	Above the printer to open the printer cover

–	On the side of the printer to replace the label and ribbon rolls

Note: The snap-off cover can be removed from the printer if the device is operated within an enclosure where no corrosive chemicals or gases are present.

•	A fixed bench (without wheels) that can support the weight of the Microplate Labeler without excessive shaking or movement

•	Proper height for any operator to comfortably operate the Microplate Labeler

Physical specifications



Dimension	Value
Width	28.7 cm (11.3 in)
Height	35.1 cm (13.8 in)
Height with printer cover opened	48.8 cm (19.2 in)
Depth	62.2 cm (24.5 in)
Weight	21 kg (47 lbs)

Note: Measurements do not include the cables or the computer.

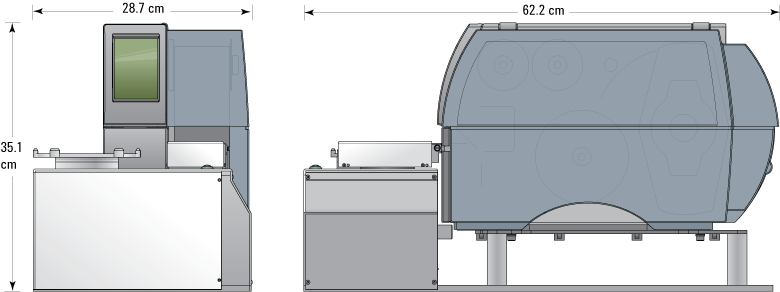

Figure. Dimensions (front and side views)



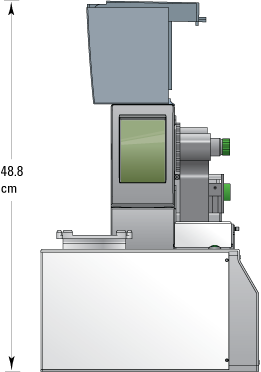

Figure. Microplate Labeler with printer cover open (front view)



Electrical requirements

The Microplate Labeler device has the following power requirements:



Utility	Requirement
Electrical	100–240~, 50/60 Hz, 2.75 A
Fuse	Two 3 A, 0.25 x 1.25 in (6.35 x 31.75 mm), fast acting

Compressed air requirements

The Microplate Labeler requires the use of clean, dry, compressed air to move the pneumatic components. The compressed air can be from the following sources:

•	Centralized source (laboratory)

•	Compressed-air cylinders

•	Portable pumps



Ensure that the air coming into the Microplate Labeler is properly filtered from moisture or aerosolized impurities. Significant moisture or impurities in the air line can adversely affect the performance and life of the Microplate Labeler. Using oil compressors can cause oil to leak into the Microplate Labeler and void your warranty.



The Microplate Labeler has the following minimum compressed-air requirements:



Requirement	Value
Quality	Clean, dry, compressed
Flow rate and pressure	1.2 Lps at 0.55 MPa (2.5 cfm at 80 psi)

Environmental requirements

The Microplate Labeler is for indoor use only. The following table lists the operating specifications for the device.



Operating	Specification
Pollution degree	2
Installation category	II
Temperature	4–40 °C
Humidity	10–90% RH, non-condensing
Altitude	1–2000 m

Make sure the Microplate Labeler is located away from moisture (sprays of water or mists).

The Microplate Labeler uses adhesive labels that are compatible with most common laboratory solvents, including DMSO and alcohols. The labels can withstand exposure to temperatures of –80 °C to 100 °C.

Computer requirements

The requirements of the controlling computer depend on the lab automation software you are using.

•	VWorks software computer requirements. See the VWorks software release notes or the Automation Solutions Knowledge Base at www.agilent.com/chem/askb.

•	Third-party automation software requirements. See the user documentation supplied with the product.

Consumables

The Microplate Labeler uses thermal transfer ribbon and adhesive labels. Your shipment includes the Agilent Media Kit, which contains a one-to-one quantity of the ribbon and labels so that you can replace them at the same time. The kit also contains a pen for cleaning the printhead and an empty spool to take up the used ribbon.

Related topics



For information about...	See...
How to install the device	Installation workflow
How to install the software	Software release notes
Safety	Safety guidelines
How to report a problem	Reporting problems
