Replacing the fuse

About this topic

This topic describes how to replace the main fuse in the Microplate Labeler.

Before you begin

Use only the specified fuse type:

3 A, 0.25 x 1.25 in (6.35  x 31.75 mm), fast acting

You can order replacement fuses from Agilent Technologies.



A blown fuse can indicate more serious problems. If the new fuse blows after replacement, contact Agilent Automation Solutions Technical Support.

Using an incorrect fuse can damage the Microplate Labeler.







Procedure

To replace the fuse in the power switch:

1	Shut down the Microplate Labeler, and unplug the power cable from the rear panel connector.

2	At the rear panel power switch enclosure, use a small flat-head screwdriver (2.5 mm) to pry open the tab on the enclosure and open the enclosure cover.

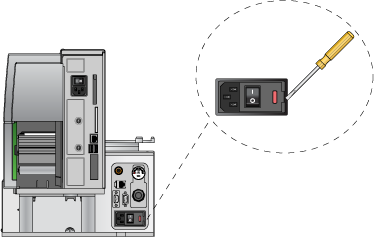

Figure. Fuse enclosure location



3	Slide the fuse cartridge all the way out of the enclosure.

Figure. Opened fuse enclosure



4	Replace the fuse in the cartridge.

5	Slide the fuse cartridge back into the power switch enclosure.

6	Press the enclosure cover securely into the closed position.

7	Plug in the power cable at the rear panel connector, and then start up the Microplate Labeler.



Related topics



For information about...	See...
Connecting the power cable	Connecting the power cord
Shutting down the Microplate Labeler	Starting up and shutting down
