Opening Diagnostics

About this topic

You use Microplate Labeler Diagnostics to set up and troubleshoot the device. This topic describes how to open Microplate Labeler Diagnostics from the VWorks software.

Note: For information on how to access Microplate Labeler Diagnostics using the ActiveX control, see the Microplate Labeler ActiveX User Guide.

Opening Diagnostics from the VWorks software

To open Microplate Labeler Diagnostics from the VWorks software:

1	In the VWorks software window, ensure the correct device file is open.

To open a device file, choose File > Open, and then select the appropriate device file (*.dev) in the Open dialog box.

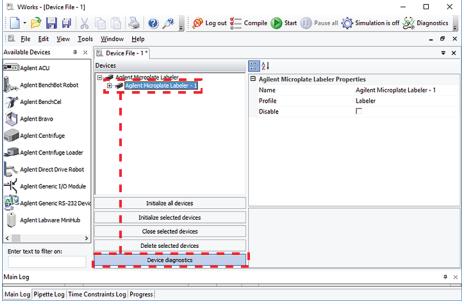

2	In the Devices area of the opened device file tab, highlight the device icon, and then click Device diagnostics.

The Microplate Labeler Diagnostics window appears.



Figure. Microplate Labeler Diagnostics



Related topics



For information about...	See...
Establishing communication with the device	Creating a VWorks device file
Profiles	Creating a profile
Designing label formats	Creating label formats
Setting up and running a VWorks labeling protocol	VWorks Automation Control User Guide
ActiveX controls	Microplate Labeler ActiveX User Guide
