Template 3—Single large text field only

Example label

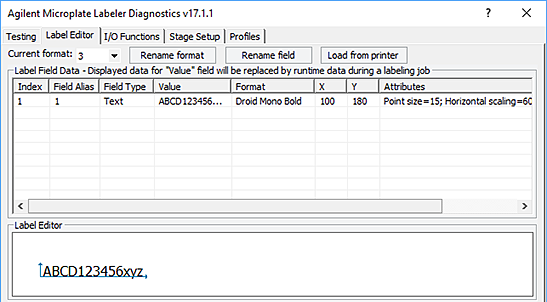

Label Editor parameters and preview



Overview

Template 3 is a text-only label format, designed to be paired with the barcode-only label in Template 2.

Specs

Maximum data: 24 characters, any type

Design features

•	The Droid Mono Bold font offers consistent character spacing, discernible characters, and a modern, look.

•	The text height is maximized within the height of the label.

•	A blank margin above the text allows for 0.76-mm (0.030-in) vertical print drift.

•	A blank margin below the text allows room for lowercase descenders, such as g or q, while also providing allowance for vertical print drift.

•	The generous left margin allows for horizontal print drift. The print drift specification is ±0.76-mm (±0.030‑in) for positioning the edge of the label to the edge of the label backing.

•	The size of the right margin varies depending on the number of characters.

•	The horizontal scaling of the text field squeezes enough characters onto the label to match the maximum data encoded in the barcode on the Template 2 label.
