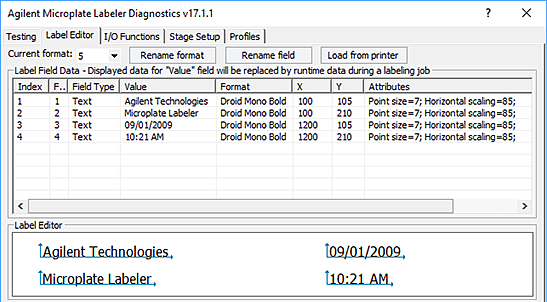

Template 5—Four small text fields Example label Label Editor parameters and preview Overview Template 5 features four text fields. This text-only label can be paired with a barcode-only label, such as Template 2, on the same microplate. Specs for text Fields 1 and 2 (left): 20 characters, maximum Fields 3 and 4 (right): 13 characters, maximum Design features • The Droid Mono Bold font offers consistent character spacing, discernible characters and a modern look. • The text height is scaled to fit one field above the other in the vertical space. Horizontal scaling offers good data density without sacrificing legibility. • Above the text, a blank margin allows for some vertical print drift. • Adequate space separates each field to prevent characters from overlapping, even with a mix of uppercase and lowercase characters. • Below the text, a blank margin allows room for lowercase descenders, such as g and q, while also providing allowance for vertical print drift. • Generous left and right margins allow for horizontal print drift.The print drift specification is ±0.76-mm (±0.030‑in) for positioning the edge of the label to the edge of the label backing. • The usable width of fields 1 and 2 (left) is slightly greater than fields 3 and 4 (right), offering options for both longer and shorter data sets.
