Opening Vertical Pipetting Station Diagnostics





About this topic

To establish communication between the host computer and the device, you initialize the device. You can initialize the device in the following ways:

•	Diagnostics. To control the device using the Diagnostics software.

•	VWorks window. To use VWorks to control the device, for example, to run a protocol, you initialize the devices in the VWorks window.

This topic describes what happens during initialization.

Procedure

To open Diagnostics:

1	In the VWorks software window, ensure the correct device file is open.

To open a device file, choose File > Open, and then select the appropriate device file (*.dev) in the Open dialog box.

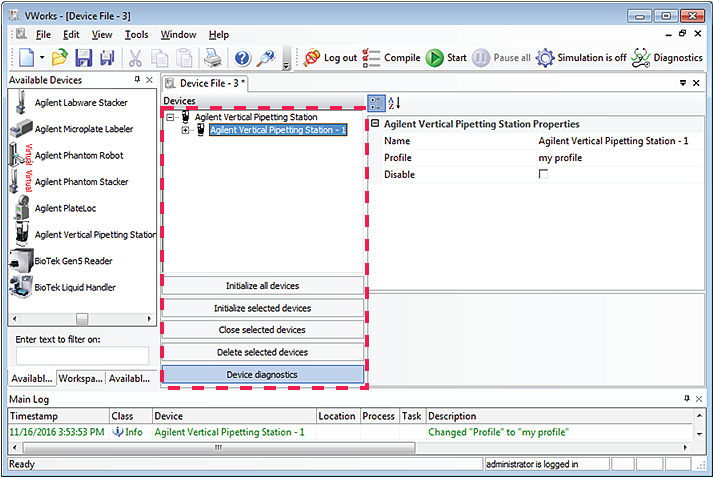

2	In the Devices area of the opened device file tab, highlight the device icon, and then click Device diagnostics.

Alternatively, you can double-click the device icon.





The device’s diagnostics dialog box opens.





Figure. Vertical Pipetting Station Diagnostics dialog box



Related topics



For more information about…	See…
The VWorks software	• VWorks Automation Control Setup Guide • VWorks Automation Control User Guide
Creating a profile	Creating Vertical Pipetting Station profiles
Editing shelf teachpoints	Setting shelf teachpoints
