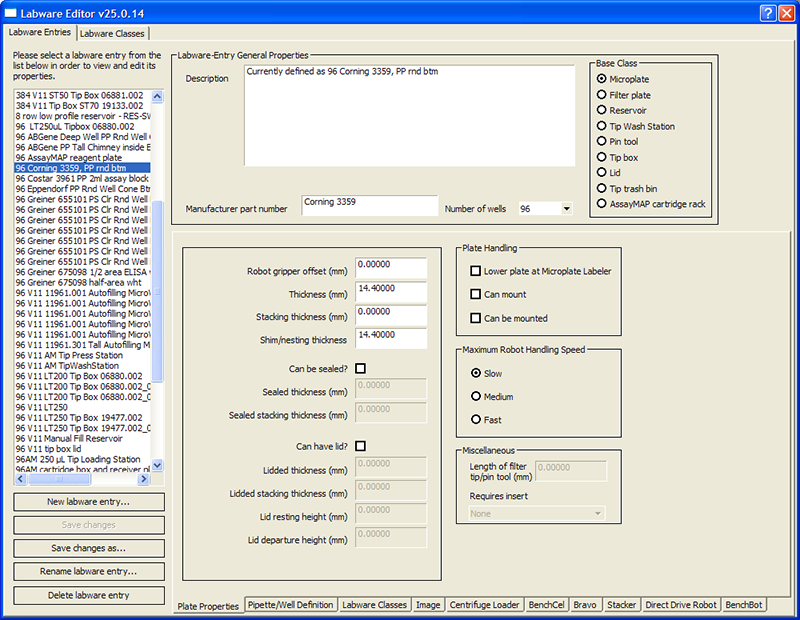

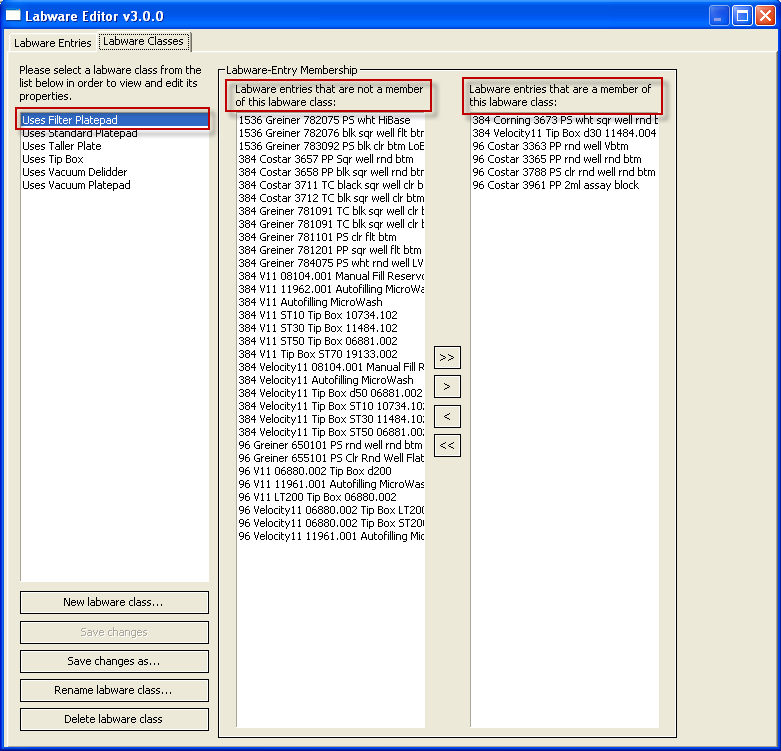

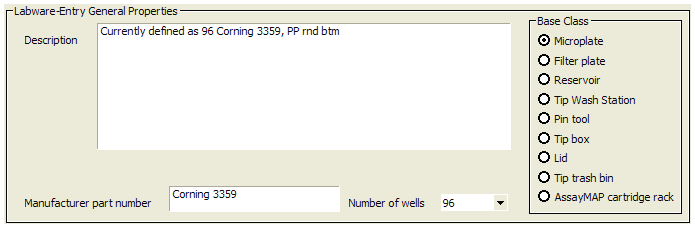

Labware Editor overview Labware Editor tabs The Labware Editor has two tabbed pages: • Labware Entries. Provides tools for creating and editing labware definitions • Labware Classes. Provides tools for creating and editing labware classes and the labware entries for each class. Labware Entries tab Sub-tabs The Labware Entries tab contains the following sub-tabs that contain the properties associated with a labware entry. To find out more about… See… Plate Properties tab Setting microplate properties Pipette/Well Definition tab Setting tip and well properties for pipetting Labware Classes tab Using labware classes example Image tab Adding a labware image Centrifuge Loader tab Setting Centrifuge Loader properties BenchCel tab Setting BenchCel Microplate Handler properties Bravo tab Setting Bravo Platform properties Stacker tab Setting Stacker properties Direct Drive Robot tab Setting Direct Drive Robot properties BenchBot tab Setting BenchBot properties Labware selection list The labware selection list, which is the left-hand column, displays the list of labware definitions and allows you to select the labware entry that you want to edit. Labware-Entry General Properties area The Labware-Entry General Properties area displays the labware properties that apply across all sub-tabs. Labware Classes tab You use the Labware Classes tab to create labware classes and assign defined labware to a labware class. Related information For information about... See... The Labware Editor About defining labware with the Labware Editor Workflow for defining labware in the Labware Editor Workflow for defining labware
