Adding a labware image

About labware images

To make it easier for operators to identify a labware type, you can insert an image of it in the Labware Editor.

Before you start

Make sure the image file you want to add is either the JPG, GIF, or BMP format.

Procedure

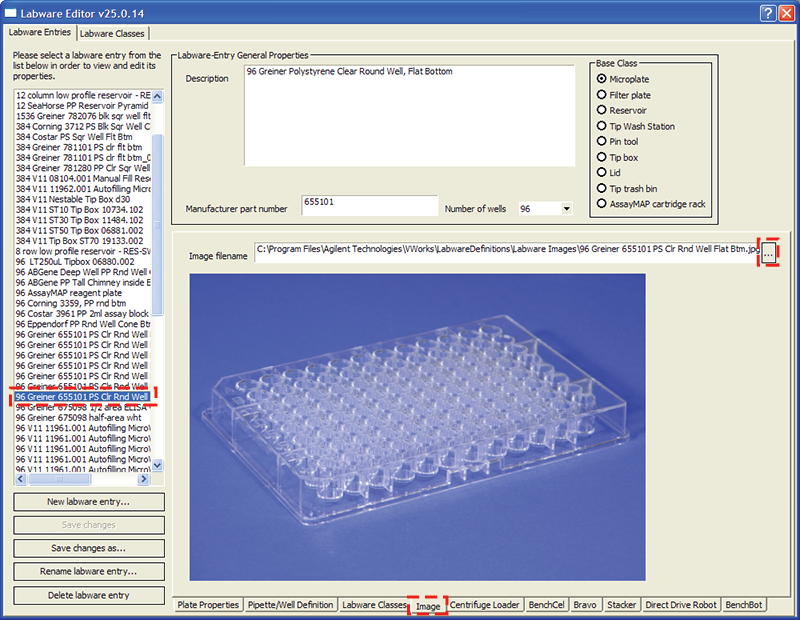

To insert an image:

1	Open the Labware Editor.

2	In the Labware Entries tab, select the labware in the left column, and then click the Image sub-tab.



3	At the Image filename box, click the button to locate the file.

4	In the Open dialog box, select the image file and click Open.

The image appears below the file name.

5	Click Save changes.

Related information



For information about...	See...
Opening the Labware Editor	Opening the Labware Editor
Workflow for adding labware to the Labware Editor	Workflow for defining labware
Using the Labware Editor	Labware Editor overview
