Setting Centrifuge Loader properties

When to set Centrifuge Loader properties

If you are operating a Centrifuge with a Centrifuge Loader, set the corresponding properties in the Centrifuge Loader sub-tab of the Labware Editor.

You must be logged in as an administrator or technician to perform this procedure.

Procedure

To set Loader properties:

1	Open the Labware Editor.

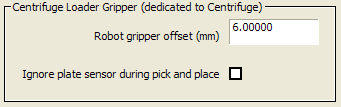

2	In the Labware Entries tab, click the Centrifuge Loader sub-tab.

3	In the Robot gripper offset (mm) box, type the distance from the bottom of the microplate where the robot can grip the microplate.

4	Optional. Select the Ignore plate sensor during pick and place check box if you want to ignore the microplate sensor, for example if you are using a black microplate that has a finish and skirt that would otherwise avoid detection.





For information about...	See...
Opening the Labware Editor	Opening the Labware Editor
Workflow for adding labware to the Labware Editor	Workflow for defining labware
Using the Labware Editor	Labware Editor overview
