Printing protocols

You can use a printout of your protocol to:

•	Troubleshoot the protocol

•	Present in a report

Before you start

Make sure:

•	The computer is connected to the printer you want to use.

•	The printer driver is installed on the computer that has VWorks software installed.

Procedure

To print a protocol:

1	Open the protocol you want to print.

2	In the VWorks window, select File > Print.

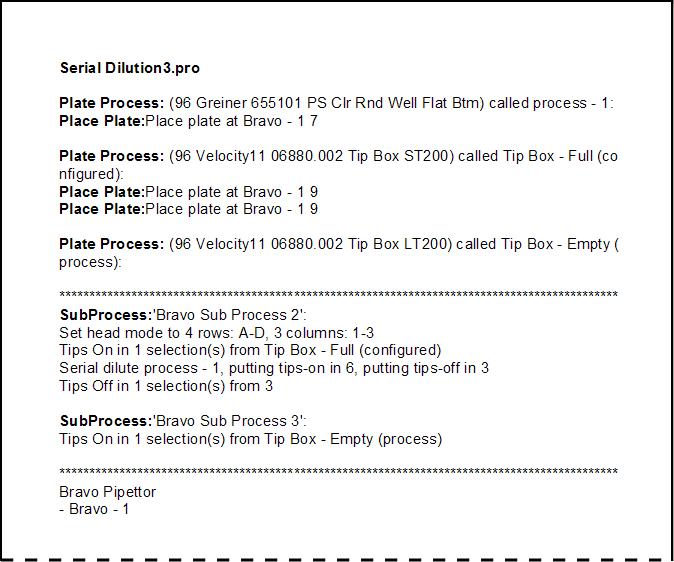

The protocol printout shows the following:





Section	Description
Protocol name	The name of the protocol.
Process name	The name of the process and the associated labware type.
Tasks	The tasks in the process, the devices used in the task, and location information.
Subprocesses	The subprocess and all tasks in the subprocess.

Related information



For information about...	See...
Compiling protocols	Compiling the protocol
Simulating protocol runs	Simulating the protocol run
Troubleshooting problems	Maintenance and troubleshooting
