About protocol macros and the macro library

About this topic

This topic describes the VWorks macros and the macro library that you can create to help simplify and expedite the protocol writing process. To create macros and protocols, you must have VWorks Technician- or Administrator-level access.

Macros defined

A VWorks macro is a collection of protocol tasks and associated task parameters grouped together in an abbreviated form. You can insert the macro easily at other places within the same protocol or throughout other protocols where the same task sequence is required.

A macro eliminates the need to recreate a repeated task sequence within the same protocols or subsequent protocols that you write. Therefore, protocol writing can be easier, faster, and less error-prone.

Suppose you want to create a protocol that has multiple wash routines, where each wash routine consists of a sequence of Tips On, Aspirate, Dispense, and Tips Off tasks. You could do the following using a macro:

1	Create the wash routine task sequence.

2	Highlight the task sequence and add it as a macro to the macro library.

3	Set custom variables at the macro level, such as the volume or number of times to wash, so that the parameters could be scripted before running the protocol.

For instance, the variables could be exposed on a protocol form that the operator is permitted to change at run time.

4	Insert the macro at the other points in the protocol where the wash routine is required.

For the subsequent protocols that you create, which require the wash routine, you can insert the macro from the macro library. For each instance of the macro, you should verify that the parameter values are set correctly, such as Location, plate and Location, location.

Later, if you want to modify the macro, the change can be replicated to all the other instances of the macro in an open protocol.

Types of macros

You can create the following types of macros in the VWorks software:



Macro	Description
Startup or cleanup macro	Available for use in the Startup Protocol area and the Cleanup Protocol area.
Main process macro	Available for use in the Main Protocol area only within the main process.
Subprocess macro	Available for use in the Main Protocol area only within a subprocess.

Macros have the following requirements:

•	All tasks in the macro must be contiguous in the protocol.

•	A macro can contain subprocess or process tasks, but not both.

•	A macro cannot contain another macro.

Macro library

The macro definitions are stored in a macro library. Although different versions of a given macro may be in use in the protocols, the software maintains only one official version in the macro library. The VWorks software uses an .mlb file to store the macro library. By default, the file path is as follows:

…\VWorks Workspace\VWorks\MacroLibrary.mlb

The Available Macros area in the VWorks window displays the contents of the macro library.

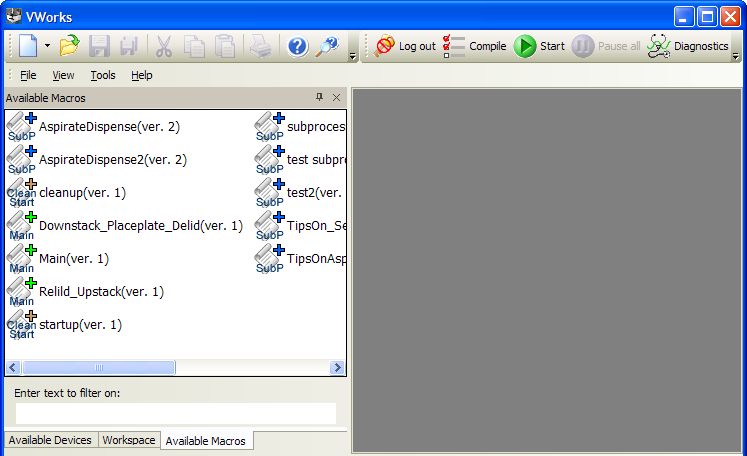

Figure. Available Macros area displaying the contents of the macro library



The Available Macros area lists the macros alphabetically. If no protocol is open, the macro list includes all types of macros. If a protocol is open, a subset of the macro library appears in the list depending on which area of the protocol tab is active and which devices are used in the protocol. For example, in the following figure only the subprocess macros for the Bravo Platform appear.

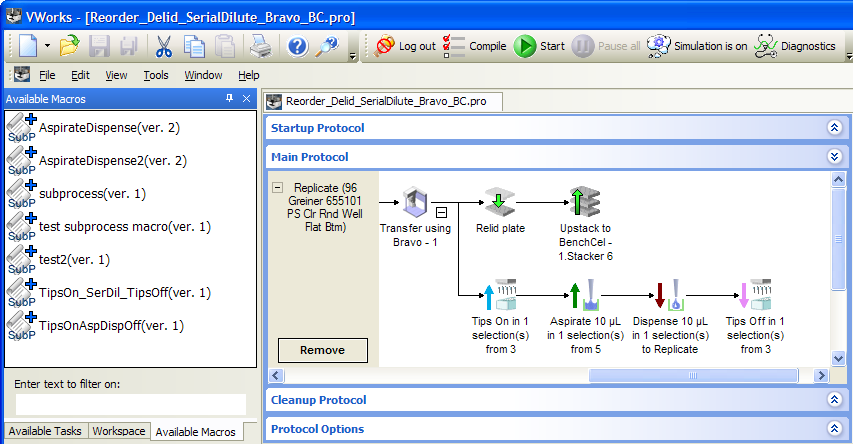

Figure. Available Macros area displaying only the subprocess macros



Related information



For information about...	See...
Creating macros	Adding macros to the macro library
Editing macros and macro version control	Editing a macro
Using a macro in a protocol	Inserting macros in protocols
Exporting and importing the macro library	Copying macros to a different computer
Exporting and importing protocols	Exporting and importing protocols and associated components
Creating a basic protocol	Creating a protocol: basic procedure
Working with JavaScript	Creating a protocol: advanced topics
