Monitoring the overall run progress

Procedure

To check the overall run progress:

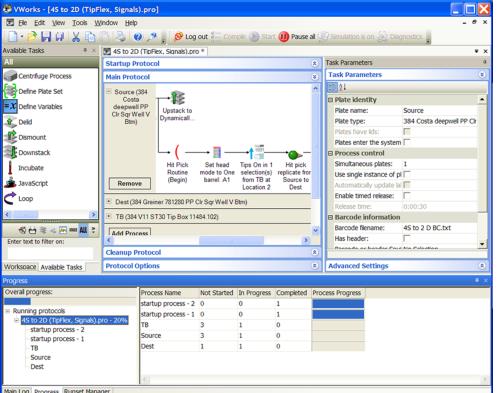

In the VWorks window, select View > Progress. The Progress tab appears at the bottom of the window and displays the following:





Area or table	Description
Overall progress	Displays a progress bar to indicate how far along the system is in all running protocols.
Running protocols	Contains the list of protocols that are currently running. You can select a protocol name to display the progress of all processes in the protocol, or you can select a specific process and display its progress.
Display	Based on your selection in the Overall progress area, shows an aspect of the overall run progress.

Related information



For information about...	See...
Tracking run progress of instances, processes, or devices	Tracking the run progress of instances or devices
Pausing the run	Pausing the run
Stopping the run	Stopping the run
