Seal (PlateLoc)

Description

The Seal (PlateLoc) task () seals microplates using the PlateLoc Sealer.

Note:

•

If you require different sealing temperatures to accommodate different microplate types, Agilent Technologies recommends that you use a different PlateLoc Sealer for each sealing temperature. Using different PlateLoc Sealers that have dedicated temperature settings prevents time lost as the device heats or cools between microplate types.

•	The PlateLoc Sealer immediately starts adjusting to the Startup seal temp defined in its profile when the profile is initialized. Initialization occurs when the protocol is first run or when you click Initialize this profile in the diagnostics dialog box.



Task is available for...	Task is available in...
PlateLoc Sealer	Main Protocol

Task parameters

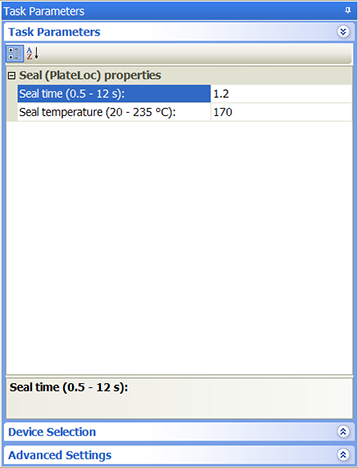

After adding the Seal (PlateLoc) task at the desired point in the protocol, set the following parameters in the Task Parameters area:





Parameter	Description
Seal time	The length of time the hot plate is in contact with the seal material and the microplate.
Seal temperature	The temperature of the hot plate when the seal cycle starts.

Device selection

You must select a device for Seal (PlateLoc) tasks. If you have multiple devices of the same type, you can:

•	Prioritize the list of devices for the task. If the first device in the list is busy, the software will automatically use the next device in the list. If all of the devices in the list are busy, the task that needs the device will wait until one becomes available.

•	Set up a backup pool. If the primary device encounters an error, the software will automatically use the next device in the list. However, if all of the devices in the list are in an error state, the software will automatically use the device in the backup pool.

IMPORTANT The multiple devices must have the same setup and configuration.

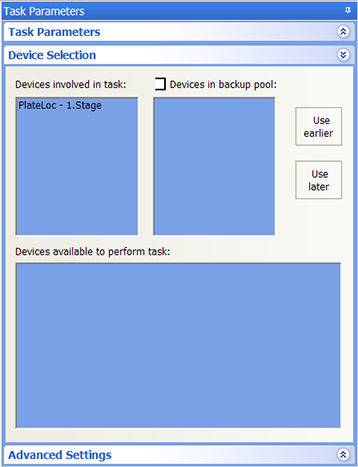

After adding the Seal (PlateLoc) task at the desired point in the protocol, select the task, and then click Device Selection in the Task Parameters area.

To select a device for the task:

1	Double-click a device in the Devices available to perform task area to add it to the Devices involved in task area.

2	To prioritize its use, select the device in the Devices involved in task area, and then click User earlier or Use later. The devices that are higher in the list are favored by the software scheduler during the protocol run.

3	Optional. Select backup devices to use in case all of the devices in the Devices involved in task area encounter an error.

a	Select Devices in backup pool.

b	Drag one or more devices from the Devices available to perform task area to the Devices in backup pool area.

c	If you have multiple devices in the backup pool, select a device in the Devices in backup pool area, and then click Use earlier or Use later to prioritize it.



Example

Goal

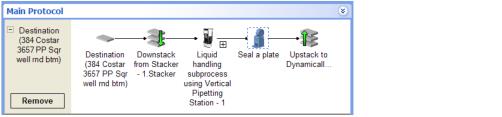

Downstack microplates from a stacking device for liquid-handling tasks on the Vertical Pipetting Station, seal them, and then upstack them to any available stacker.

Implementation

Add a Seal (PlateLoc) task after the Vertical Pipetting Station Subprocess.
