Disassemble Vacuum (Bravo)

Description

The Disassemble Vacuum task () directs the robot to remove components from the Vacuum Filtration Station and place them back at the locations specified in the Assemble Vacuum task. If a filter plate was placed on top of the station, the Disassemble Vacuum task directs the robot to move the microplate to a specified location before disassembly.



Task is available for...	Task is available in...
Bravo Platform	Main Protocol, Bravo Subprocess

The task is used in conjunction with the following tasks:

•	Assemble Vacuum

•	Move and Filter Plate

•	Pipette Under Vacuum Collar

•	Toggle Vacuum

Requirements

The Disassemble Vacuum (Bravo) task has the same requirements as the Assemble Vacuum (Bravo) task. The Assemble Vacuum (Bravo) task must precede the Disassemble Vacuum (Bravo) task in the protocol.

Task parameters

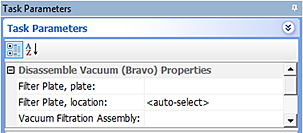

After adding the Disassemble Vacuum (Bravo) task at the desired point in the protocol, set the following parameters in the Task Parameters area:





Parameter	Description
Filter Plate, plate	The labware used as the filter plate. Select the filter plate from the list, for example, the filter plate process.
Filter Plate, location	The deck location where you want the filter plate to be placed during the disassembly process. For example, if the Bravo profile is configured for a Filter Holder Plate accessory at deck location 4 or 6, you can specify the corresponding location. Note: If the station has two filter plates, one on top of the collar, and one immediately below the collar, make sure you specify the top filter plate. <auto-select> automatically places the labware at the first-available or appropriate location for the task. If you are performing double-filtration in configuration A, do not use auto-select.
Vacuum Filtration Assembly	The deck location of the Vacuum Filtration Station base.

Examples:

See the example in:

•	Move and Filter Plate (Bravo)

•	Toggle Vacuum (Bravo, Vertical Pipetting Station)
