Set Temperature - Position (Bravo)

Description

The Set Temperature - Position (Bravo) () task sets or turns off the target temperature for a Heating Shaking Station accessory, without regard to which labware is on the station.



Task is available for...	Task is available in...
Bravo Platform	Startup Protocol Main Protocol, Bravo Subprocess Cleanup Protocol

If you want to control the temperature for a Heating Shaking Station accessory for a specific labware on the station, see Set Temperature (Bravo).

Requirements

To use the Set Temperature - Position task, you must first configure a Heating Shaking Station accessory in Bravo Diagnostics. The software considers any heating or shaking accessory controlled by an Inheco STC or MTC Controller to be a Heating Shaking Station accessory, for example, the Peltier Thermal Station (CPAC).

Task parameters

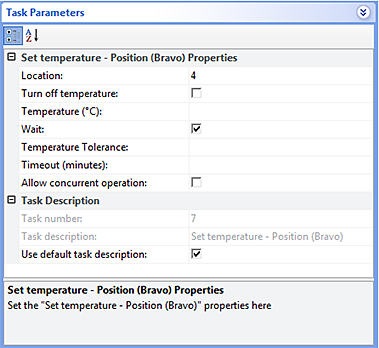

After adding the Set Temperature - Position task at the desired point in the protocol, set the following parameters in the Task Parameters area:









Parameter	Description
Location	The Bravo deck location where the task will occur, for example, a Peltier Thermal Station (CPAC) at deck location 4 or 6. If the task is in a Bravo subprocess, the Bravo device specified by the Subprocess task is used. If the task is in the Startup or Cleanup protocol, the Task Parameters pane Device Selection specifies which Bravo to use.
Turn off temperature	The option to use this task to turn off the temperature control. If this option is not selected, the task will start temperature control.
Temperature	The target temperature (°C) for the accessory to achieve during this task.
Wait	The option to wait until the accessory achieves the target temperature within the specified tolerance before the task completes. If this option is not selected, the task considers itself completed as soon as the temperature control turns on or off successfully.
Temperature tolerance	The acceptable range of temperature (°C) above or below the specified target temperature.
Timeout	The duration (minutes) to wait for the temperature to reach the specified target temperature within the specified tolerance.
Allow concurrent operation	Not applicable
