Creating and editing pipetting techniques

Creating a pipette technique

You can create a Pipette Technique in two ways:

•	When setting task parameters in a protocol

•	Using the Tools menu

To create a Pipette Technique when setting task parameters:

1	In the VWorks window, create a new protocol.

2	Add the Subprocess (Bravo) or Subprocess (Vertical Pipetting Station) task.

3	Add one of the following tasks:

•

Aspirate

•

Dispense

•

Mix

•

Pin Tool

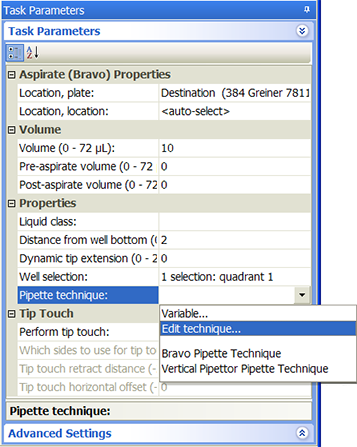

4	In the Task Parameters area, select Edit technique in the Pipette Technique property list.

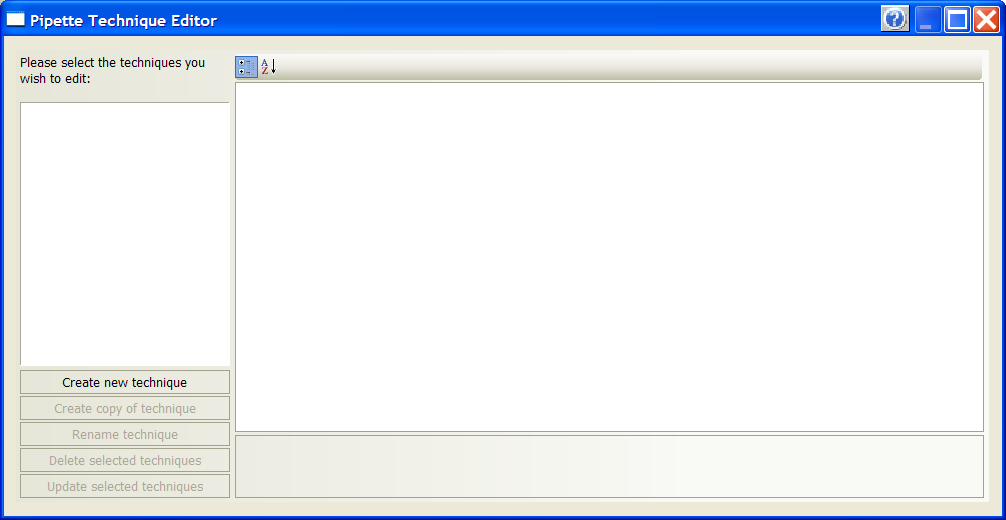

The Pipette Technique Editor dialog box opens.

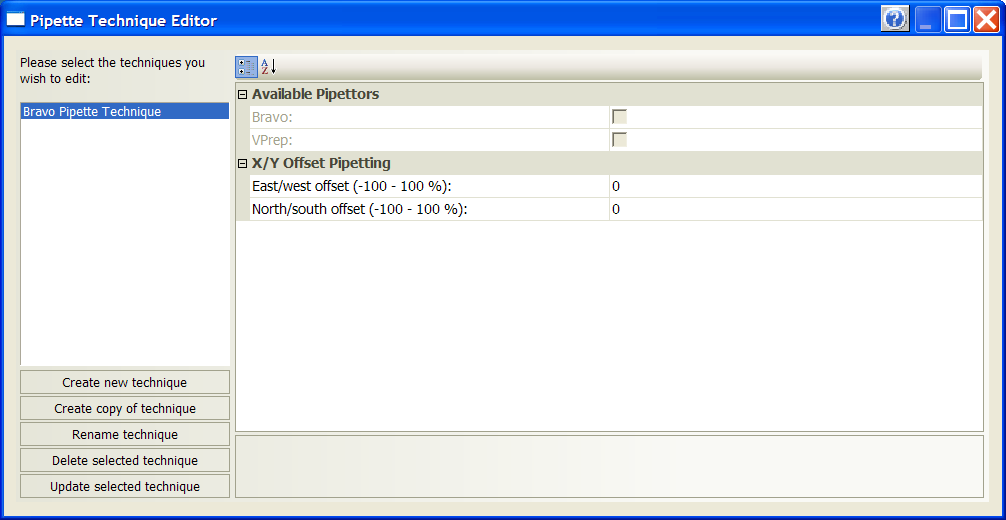

5	Click Create new technique, type a technique name, and then click OK. The new technique name appears in the Pipette Technique Editor dialog box. In addition, the X/Y Offset parameters appear to the right of the technique name.



6	In the East/west offset (-100 - 100%) box, type the distance (in percent of well radius) you want the pipette to move in the X direction:

•	0 does not move the pipette horizontally.

•	Positive value moves the pipette to the right.

•	Negative value moves the pipette to the left.

Note: The pipette offset directions do not correspond to the robot jog directions in Bravo and Vertical Pipetting Station Diagnostics.



7	In the North/south offset (-100 - 100%) box, type the distance (in percent of well radius) you want the pipette to move in the Y direction.

•	0 does not move the pipette forward or backward.

•	Positive value moves the pipette backward.

•	Negative value moves the pipette forward.

Note: The pipette offset directions do not correspond to the robot jog directions in Bravo and Vertical Pipetting Station Diagnostics.



8	When you are finished, click Update the selected technique.

To create a Pipette Technique using the Tools menu:

1	In the VWorks window, on the Tools menu, click Pipette Technique Editor. The Pipette Technique Editor dialog box opens.

2	Click Create new technique, type a technique name, and then click OK. The new technique name appears in the Pipette Technique Editor dialog box. In addition, the X/Y Offset parameters appear to the right of the technique name.

3	Set the parameters in the X/Y Offset Pipetting table.

4	When you are finished, click Update the selected technique.

Editing a pipette technique

You can edit a Pipette Technique in two ways:

•	When setting task parameters in a protocol

•	Using the Tools menu

To edit a Pipette Technique when setting task parameters:

1	In the VWorks window, open the protocol.

2	In the Main Protocol area, select the task for which the Pipette Technique will change.

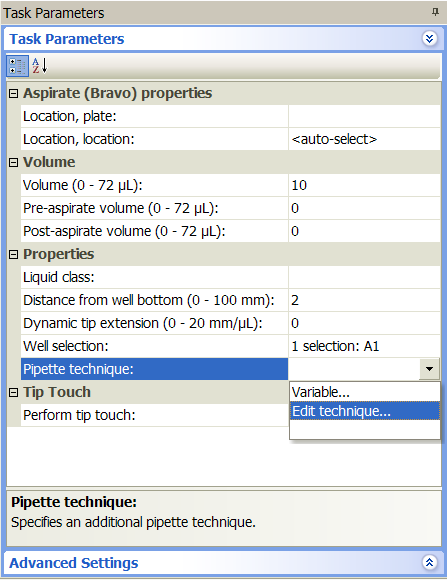

3	In the Task Parameters area, select Edit technique in the Pipette Technique property list.



The Pipette Technique Editor dialog box opens.



4	Select the Pipette Technique on the left side of the dialog box.

5	Make the desired changes in the X/Y Offset Pipetting table.

6	When you are finished, click Update selected technique.

To edit a Pipette Technique using the Tools menu:

1	In the VWorks window, on the Tools menu, click Pipette Technique Editor. The Pipette Technique Editor dialog box opens.

2	Select the Pipette Technique on the left side of the dialog box.

3	Make the desired changes in the X/Y Offset Pipetting table.

4	When you are finished, click Update selected technique.
