Template 3—Single large text field only
Example label
 |

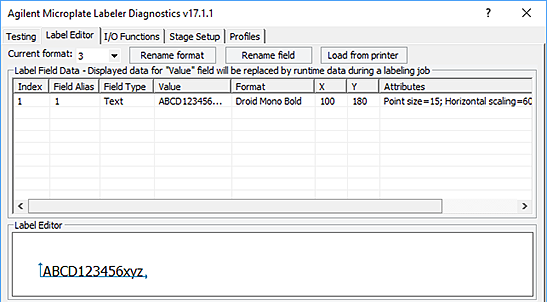

Label Editor parameters and preview
 |
Overview
Template 3 is a text-only label format, designed to be paired with the barcode-only label in Template 2.
Specs
Maximum data: 24 characters, any type
Design features
• The Droid Mono Bold font offers consistent character spacing, discernible characters, and a modern, look.
• The text height is maximized within the height of the label.
• A blank margin above the text allows for 0.76-mm (0.030-in) vertical print drift.
• A blank margin below the text allows room for lowercase descenders, such as g or q, while also providing allowance for vertical print drift.
• The generous left margin allows for horizontal print drift. The print drift specification is ±0.76-mm (±0.030‑in) for positioning the edge of the label to the edge of the label backing.
• The size of the right margin varies depending on the number of characters.
• The horizontal scaling of the text field squeezes enough characters onto the label to match the maximum data encoded in the barcode on the Template 2 label.
