Opening a form
The instructions in this topic assume that you have designed the form and you want to open it and verify that it works before distributing it for use in your lab.
To open a form:
1 Log in to the VWorks software.
2 Click File > Open >Form. The Open File dialog box opens.
 |

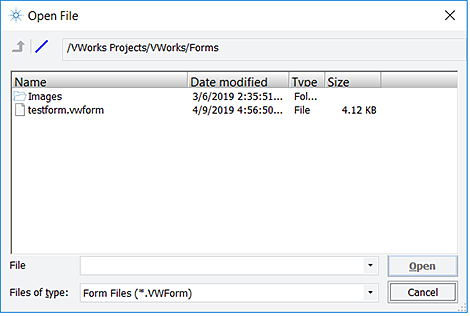

3 In the Open File dialog box, select the form file (*.VWForm), and then click Open. The form opens in the VWorks window.

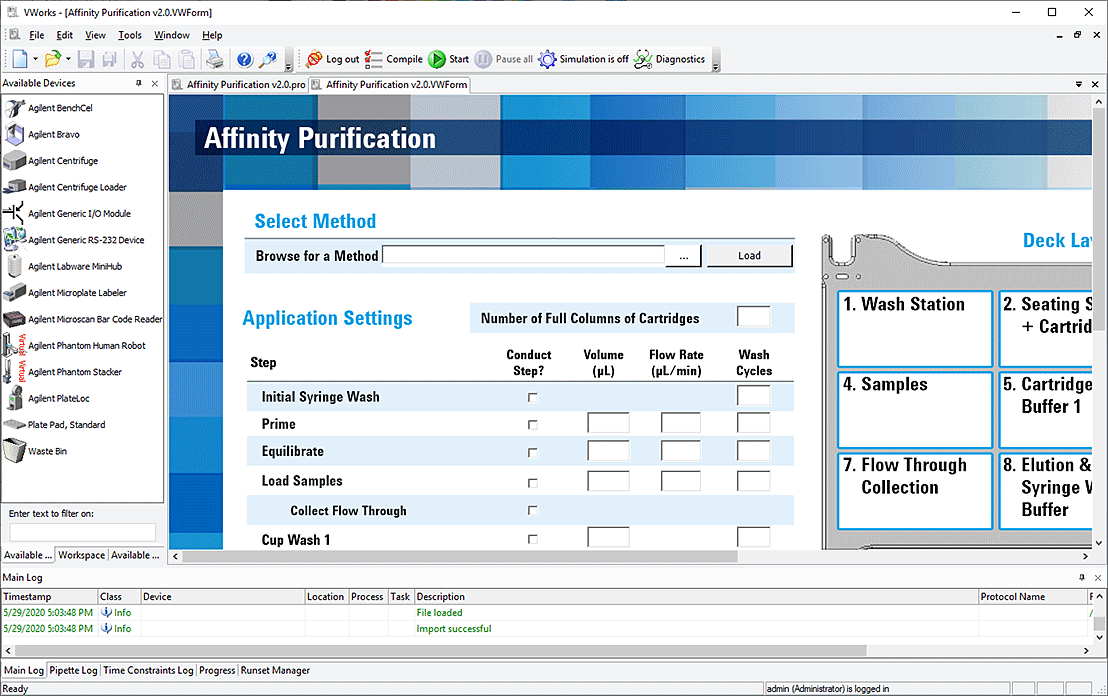

Figure Example of a form open in partial screen mode
 |
Note: A form file is not associated with a protocol or device file until you start a run.
Note: If you need to view or update the inventory database before starting the run, you must first open the related protocol or device file. If you want to display the device file, click the Workspace tab in the Available tasks area, and then click the device file name.
Related information
For information about... | See... |
|---|---|
Creating forms | |
Opening a protocol |
