Changing the robot speed







You can select the robot speed to accommodate the task you are performing. For example, you can select the Slow speed when you are creating new teachpoints or diagnosing problems with the system. When you are confident that problems are resolved and want to run a final check, you can select the Fast speed.

The speed you select in BenchBot Robot Diagnostics applies only to the robot commands in BenchBot Robot Diagnostics (jog direction, Move to, Pick from, Place to, and Transfer).

To select the robot speed:

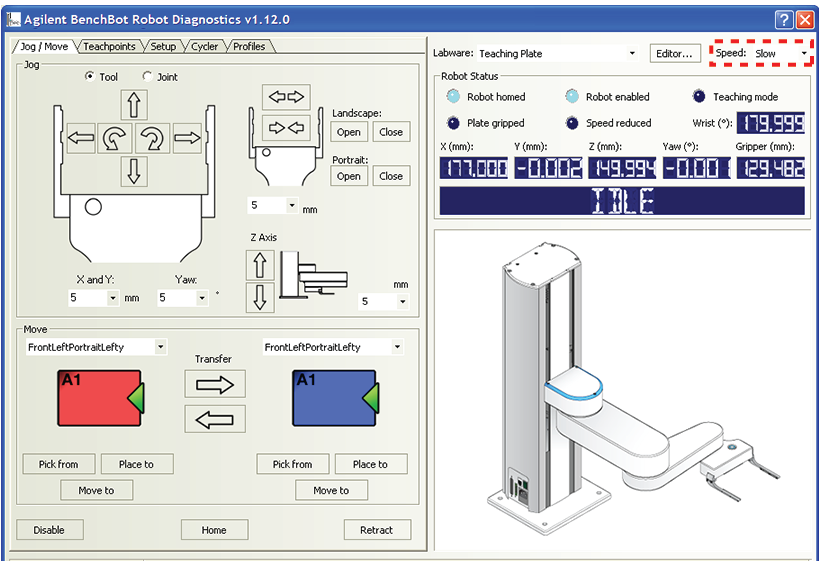

In BenchBot Robot Diagnostics, select one of the following from the Speed list: Fast, Medium, or Slow.



Note: During a protocol run, the robot will use the speed selection in the VWorks software Tools > Options dialog box. If the robot is holding a microplate, the slower of the following will be applied: the speed for the selected labware in the Labware Editor or the speed in the Tools > Options dialog box. For more information, see the VWorks Automation Control Setup Guide and VWorks Automation Control User Guide.
