Saving the teachpoints

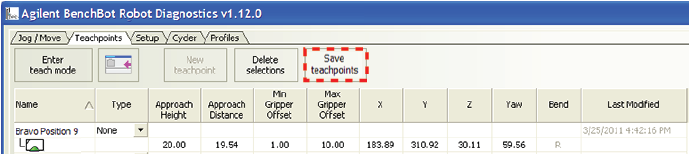

To save the teachpoints, click Save teachpoints.



Be sure to remove the teaching plate from the robot grippers when you are finished. See Installing and removing the teaching plate in the robot grippers.
