Agilent Technologies recommends that you back up existing table dimensions and robot position settings before changing them.
1
3 Click Save. The robot settings are saved in an XML file.Take the measurements that are shown in the following diagram. The crosshair symbol in the diagram marks the center of the robot. The W-axis is width of the robot-attachment surface. W1 and W2 specify the lengths of the two segments of the width. The line that intercepts the end of W1 and the beginning of W2 runs through the center of the robot base. The D-axis is the depth of the robot-attachment surface. D1 and D2 specify the lengths of the two segments of the depth. The line that intercepts the end of D1 and the beginning of D2 runs through the center of the robot base.

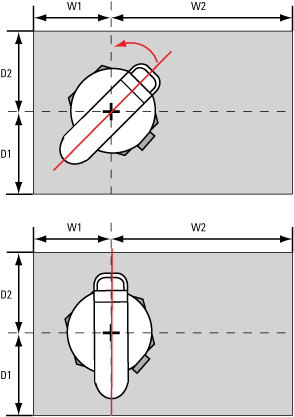

Note: The measurements can be approximate and the axis assignment is arbitrary. The information is used to draw the graphic in DDR Diagnostics and is not used for robot operation.During this procedure, you will determine the angle between the robot 0° position relative to the D-axis. The robot is at its 0° position when the mast sits directly above the robot cable connection.The following diagram shows the robot rotated halfway between the 0° position and the D-axis. Notice the location of the robot cable connection (the gray rectangular block).

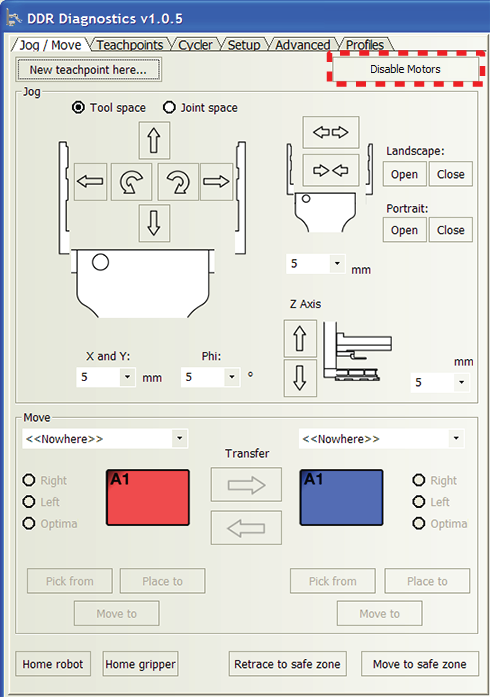

1 In Direct Drive Robot Diagnostics, click the Jog/Move tab, and then click Disable Motors. You should be able to rotate the robot waist and arm manually without resistance.

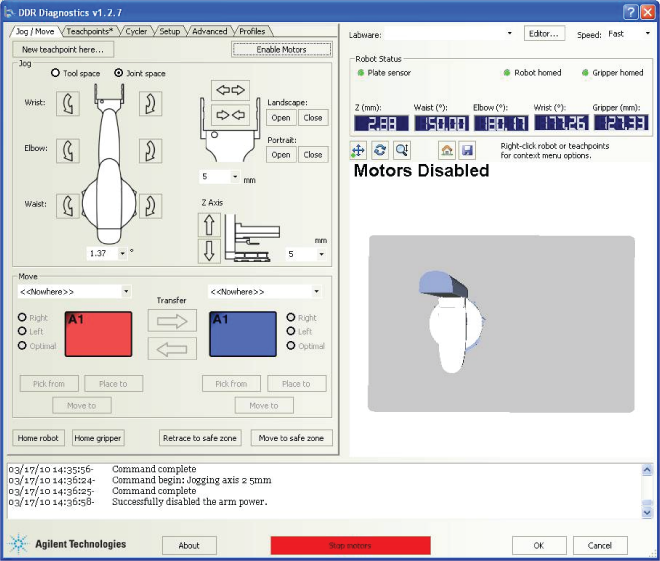

2 Turn the robot waist such that the bicep is parallel to the D-axis and the mast is in the D2 half of the plane.

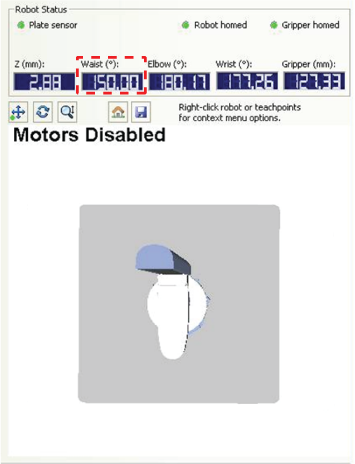

3 In Direct Drive Robot Diagnostics, note the Waist angle in the Robot Status area. This is the robot angle value you will use.
Entering the information in DDR Diagnostics
1

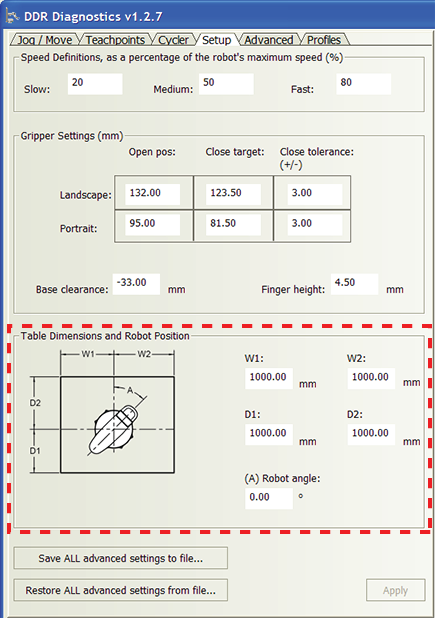

2 In the Table Dimensions and Robot Position area, type the desired values that define the table: W1, W2, D1, and D2.
3 Type the Robot angle value. This is the Waist angle value displayed in the Robot Status area.

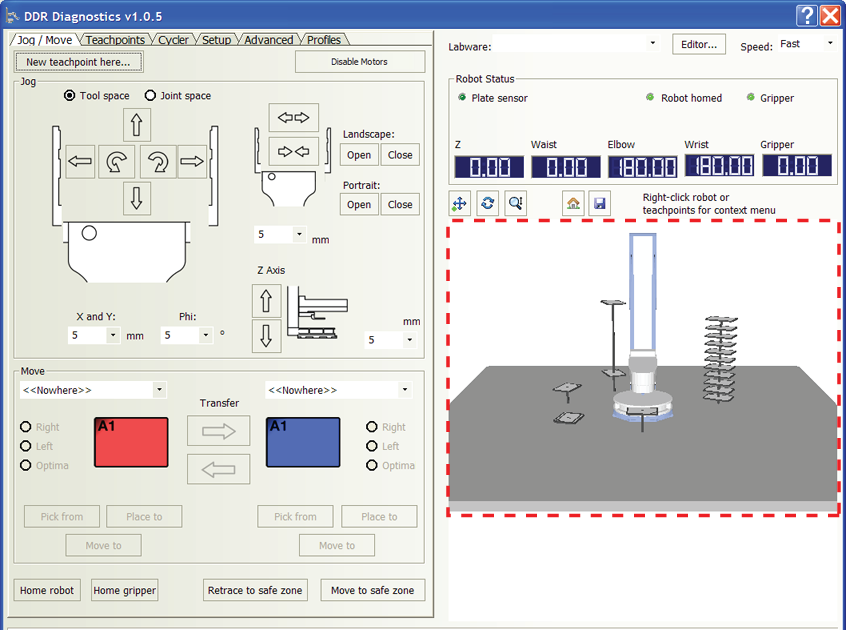

4 When you are finished, click Apply. The changes are saved to the firmware. In addition, the graphic in the Robot Status area updates.
6 After you have verified that the table settings are correct, click Save ALL advanced settings to file. The values in the Setup tab are saved to an XML file. You can use the XML file to recover the settings if they are lost.
