Monitoring the overall run progress
Procedure
To check the overall run progress:

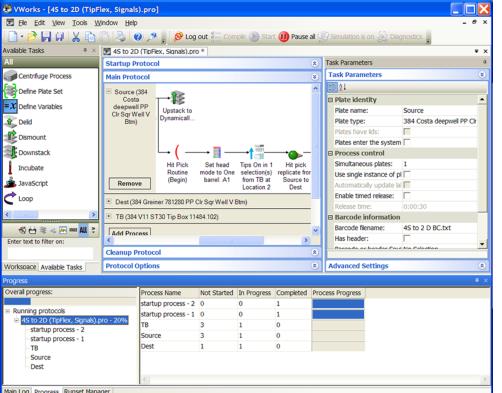

In the VWorks window, select View > Progress. The Progress tab appears at the bottom of the window and displays the following:
 |
Area or table | Description |
|---|---|
Overall progress | Displays a progress bar to indicate how far along the system is in all running protocols. |
Running protocols | Contains the list of protocols that are currently running. You can select a protocol name to display the progress of all processes in the protocol, or you can select a specific process and display its progress. |
Display | Based on your selection in the Overall progress area, shows an aspect of the overall run progress. |
Related information
For information about... | See... |
|---|---|
Tracking run progress of instances, processes, or devices | |
Pausing the run | |
Stopping the run |
