Setting general properties
About general properties
The general properties describe the type of labware that is being entered into the database and are visible on all of the sub-tabs of the Labware Editor.
Before you start
• You must be logged in as an administrator or technician to perform this procedure.
• You must first create an entry for the labware.
• VWorks Plus only. Each labware entry is a record of interest that transitions through development states. A VWorks technician or administrator can edit labware entries that are In Development or In Validation. The parameter settings in the Labware Entries tab are unavailable if the labware entry is Released.
Procedure
To define the general properties of a piece of labware:
1 Open the Labware Editor.
2 In the Labware Entries tab, select the labware from the list.

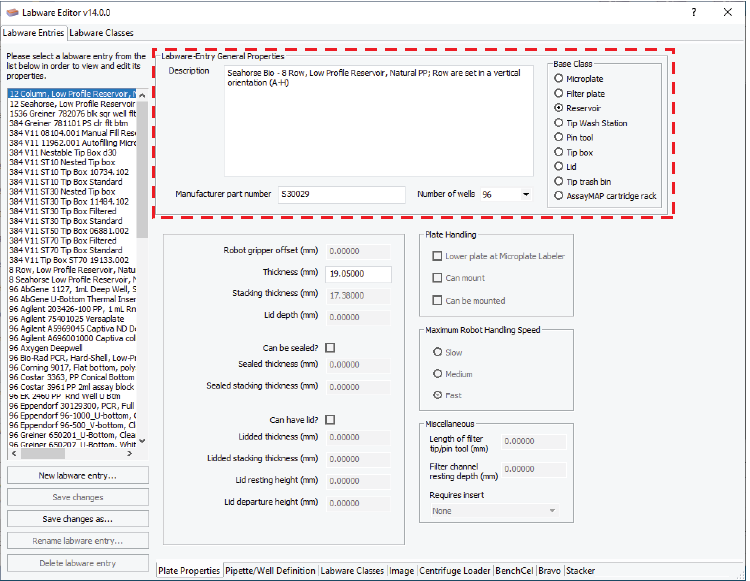

3 Under Labware-Entry General Properties, type a detailed description of the labware in the Description box.
 |
4 In the Manufacturer part number box, type the appropriate number for your reference.
5 In the Number of wells list, select the number of wells in the microplate.
If you are defining a tip box, this is the number of tips that the box can hold.
6 In the Base Class area, select one of the options.
The option you select determines which Labware Editor properties are available. For example, when a base class of Microplate is selected, the Length of filter tip/pin tool (mm) property is unavailable.
Note: The Pin tool base class is not used.
Related information
For information about... | See... |
|---|---|
Opening the Labware Editor | |
Workflow for adding labware to the Labware Editor | |
Setting microplate properties for labware |
