Printing protocols
You can use a printout of your protocol to:
• Troubleshoot the protocol
• Present in a report
Before you start
Make sure:
• The computer is connected to the printer you want to use.
• The printer driver is installed on the computer that has VWorks software installed.
Procedure
To print a protocol:
1 Open the protocol you want to print.
2 In the VWorks window, select File > Print.

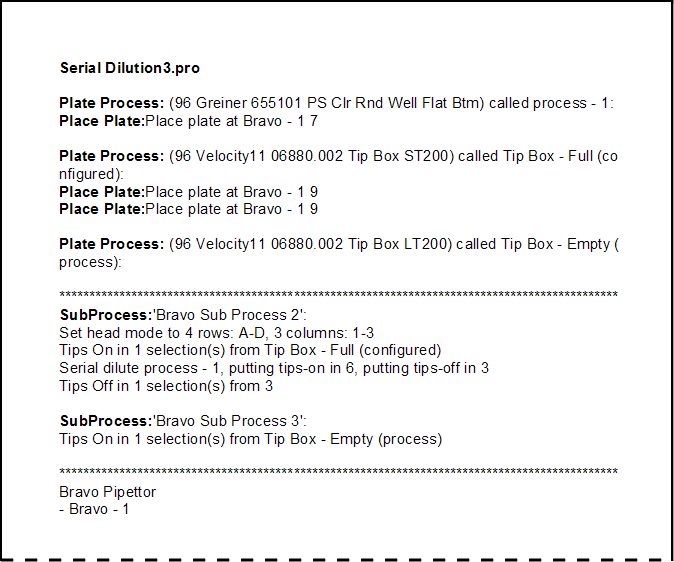

The protocol printout shows the following:
 |
Section | Description |
|---|---|
Protocol name | The name of the protocol. |
Process name | The name of the process and the associated labware type. |
Tasks | The tasks in the process, the devices used in the task, and location information. |
Subprocesses | The subprocess and all tasks in the subprocess. |
Related information
For information about... | See... |
|---|---|
Compiling protocols | |
Simulating protocol runs | |
Troubleshooting problems |
