Opening BenchCel Diagnostics


About this topic
To establish communication between the host computer and the device, you initialize the device. You can initialize the device in the following ways:
Diagnostics. To control the device using the Diagnostics software.
VWorks window. To use VWorks to control the device, for example, to run a protocol, you initialize the devices in the VWorks window.
This topic describes what happens during initialization.
Procedure
To open Diagnostics:
1 In the VWorks window, ensure that the correct device file is open.
To open a device file, choose File > Open > Device, and then select the appropriate device file (*.dev) in the Open File dialog box.

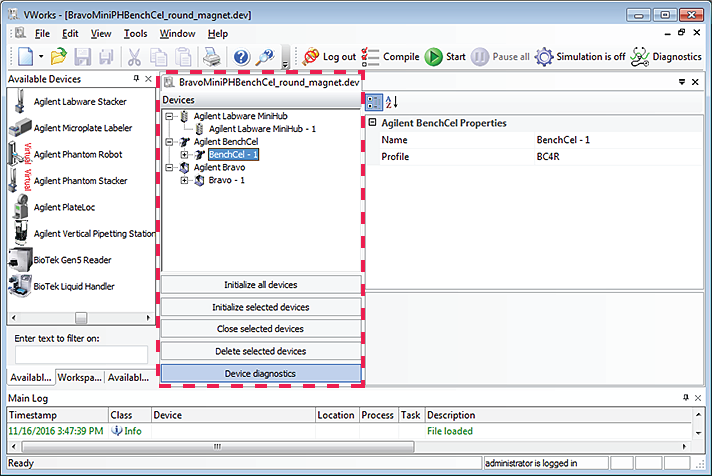

2 In the Devices area of the opened device file tab, highlight the device icon, and then click Device diagnostics.
Alternatively, you can double-click the device icon.


The device’s diagnostics dialog box opens.


Figure BenchCel Diagnostics window with Profiles page displayed

Note: For VWorks 14.0 and later versions, the Profiles page contains log areas.
