Configuration tab quick reference
About this topic
This topic provides a reference for the Configuration tab in Bravo Diagnostics.
Procedures
The Configuration tab enables you to configure and test accessories. For the procedures, see:
Contents
The Configuration tab in Bravo Diagnostics contains the following areas:

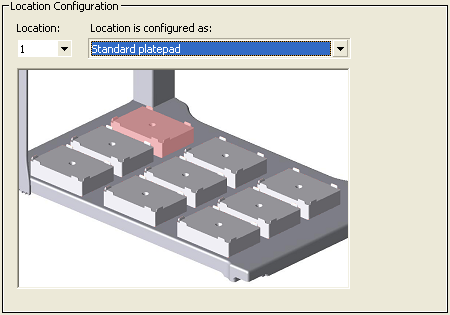

Location Configuration area
 |
Control or indicator | Description |
|---|---|
Location | A list that specifies the deck location. The deck layout graphic highlights the selected location. |
Graphical display of Bravo deck | An interactive display that provides the following: • Alternative way to specify the location that you want to configure. • Visual display of the type of accessory configured for each location. |
Location is configured as | Specifies the function of the selected location as either: • Standard platepad. Designates a generic pad. • (SRT only) platepad for 250 uL tips. Available only for the shorter model Bravo SRT for use with the 250‑µL tip boxes. See (Bravo SRT only) Setting up an LT tip box location. • Accessory. Displays the Accessory Wizard, which steps you through specifying a configured accessory at the specified position. |

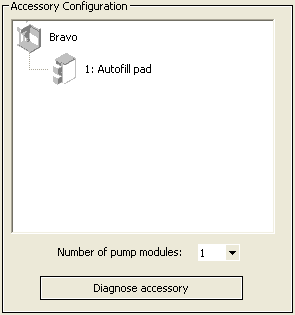

Accessory Configuration area
 |
Control or indicator | Description |
|---|---|
Graphical display of configured accessories | Displays icons of the Bravo Platform and any configured accessories associated with specific deck locations. |
Diagnose accessory | Displays the Accessory Diagnostics dialog box for the selected accessory. Click the accessory icon in the graphic to display the corresponding dialog box. See Accessory Diagnostics dialog box. |
Number of pump modules | Specifies the total number of Pump Modules for the given Bravo Platform. Each Pump Module contains two peristaltic pumps. |
