Adding and deleting a Labware MiniHub in the device file
Adding a Labware MiniHub in the device file
To add a Labware MiniHub in the device file:
1 In the Available Devices area, double-click the Labware MiniHub device icon. Alternatively, you can drag the icon from the Available Devices area into the Device File area.
 |
Notice that in the Devices area, the first Labware MiniHub device is labeled Labware MiniHub-1. If you add another Labware MiniHub device, it will appear as Labware MiniHub-2.
If you do not see the Labware MiniHub in the Available Devices list, check that the MiniHub plugin file (AgilentLabwareMiniHub.dll) is stored in the following folder: ...\Agilent Technologies\VWorks\Plugins.
If you added the Labware MiniHub plugin file in the Plugins folder and you have already started the VWorks software, be sure to reload the plugin. To do this, close any open device files and protocol files, and then select Tools > Reload Plugins.
2 If you have multiple Labware MiniHub devices in the system, repeat step 1 to add the other Labware MiniHub devices.
Deleting a Labware MiniHub from the device file
To delete a Labware MiniHub from the device file:

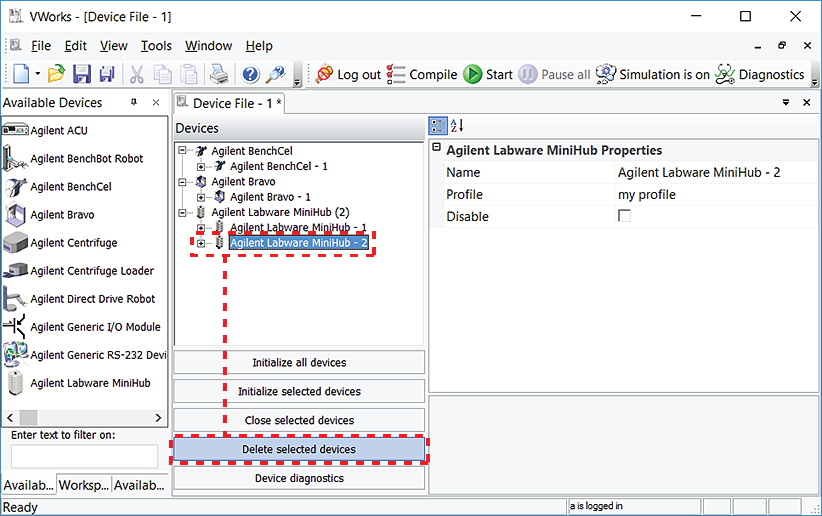

1 In the VWorks window, select the Labware MiniHub you want to delete in the Devices area.
2 Click Delete selected devices.
 |
Related information
For information about... | See... |
|---|---|
Creating profiles for the Labware MiniHub | |
Editing profiles | |
Setting up Labware MiniHub properties in the device file | |
VWorks software | • VWorks Automation Control Setup Guide • VWorks Automation Control User Guide |
